Rotax Genuine Retrofit Clutch Assembly

Name: Rotax Genuine Retrofit Clutch Assembly
Brand: Rotax
Price: 302.94 GBP
Availability: OutOfStock

SKU:

Sale Sold out

Ex VAT: £302.94

£363.53 Inc VAT

Shipping calculated at checkout.

Rotax Max Clutch Front Sprocket Genuine Racing (Teeth Size) : 12

12 13 14 15 16

Out of stock? We'll email you the moment it's back.

One email, no spam — with a link to add it straight to your basket.

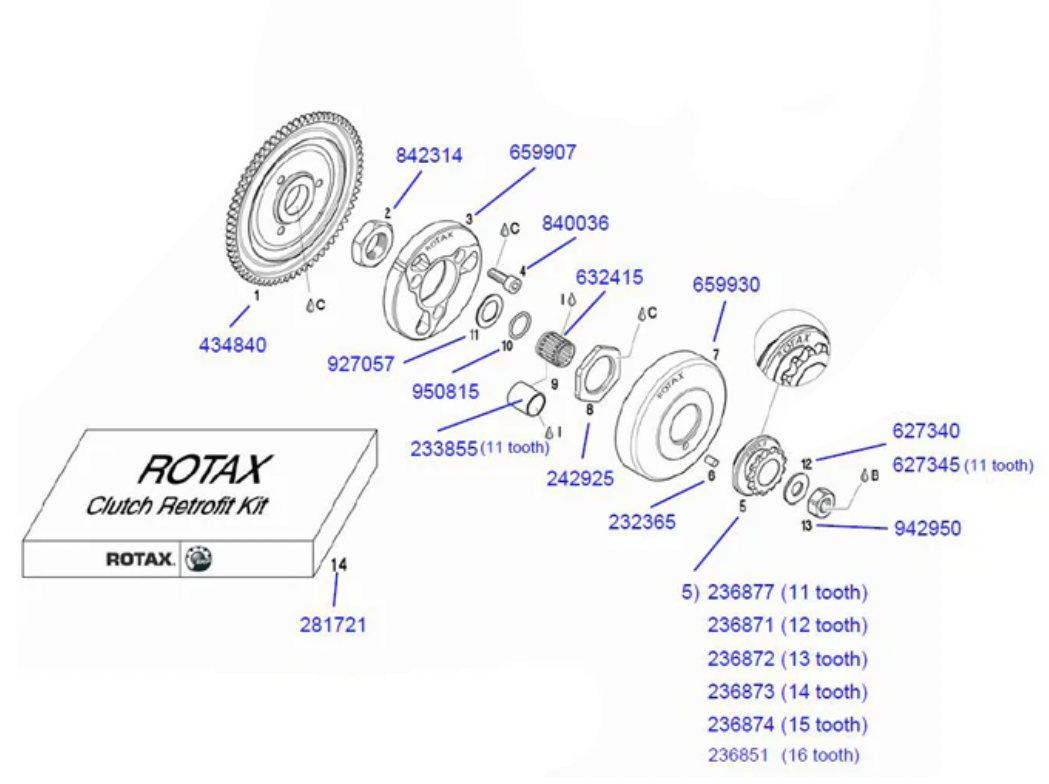

Part of the Rotax Max Clutch diagram

See the other 21 parts in this group · add what else you need

View the Rotax Max Clutch parts diagram →Numbered drawing · find your part and add it from the list

Loading parts…

#	Part number	Description	Also stocked as
1	434840	STARTER GEAR 70 T
2	842319	HEX. NUT M20X1.5	842310
3	659907	CENTRIFUGAL CLUTCH ASSY.
4	840036	ALLEN SCREW M6X12 DIN 912
5	236877	SPROCKET 11 T
5	636021	SPROCKET 12 T
5	636022	SPROCKET 13 T
5	636023	SPROCKET 14 T
5	636024	SPROCKET 15 T
5	636025	SPROCKET 16 T
6	232365	NEEDLE PIN 5X5
7	659939	CLUTCH DRUM	659930
8	242925	HEX. NUT M28X1 HEIGHT 4.6
9	233855	PLAIN BEARING 15X17X17.6	233850
10	632415	NEEDLE CAGE K 15X19X17
11	950815	O-RING 12X2.5
12	927057	THRUST WASHER 15.2/25/1	927050
13	627340	THRUST WASHER 10/22/1.5
13	627345	THRUST WASHER 10/19/1.5
14	942951	HEX. NUT M10X1	942950
19	281721	RETROFIT KIT CLUTCH 125 MAX
