Freeline Brake Tie Rods

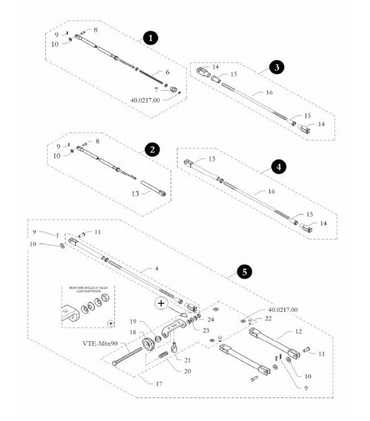

Parts diagram

Freeline Brake Tie Rods parts diagram

Find your part by its number on the drawing, then add it straight to your basket from the matching list.

All Synergy / Freeline diagrams →
Other Synergy / Freeline parts diagrams (35)ShowHide
AccessoriesBrake Master CylinderRear Brake CaliperBrake SystemsBrake Systems "R"Engine MountsExhaust SupportExhaust Support Rotax MaxFloor PanelAxle Bearing CarrierAxlesBearingsDisc CarrierSprocket CarrierHubsPedalsPedals Hi TechPetrol TankSeats And SupportsSteeringSpindlesSpindles - Screw M8 (Birel ART)Steering Tie RodsSteering WheelSportswearFreeline StickersFreeline Thermic Set - Water TubeFreeline Thermic Set Water PumpFreeline Wheels "F"Freeline Wheels "H"Freeline Wheels "M"Freeline Wheels "R"KG 509 BodyworkFront BumperSide Pods Support
Category 15 Category 15 image
Pos. FREELINE PART NUMBER KKC SKU Description RRP
1 10.10023.00 FL-10-10023-00 CABLE ROD 430 ASSEMBLY 33.27
1 10.10026.00 FL-10-10026-00 CABLE ROD 390 ASSEMBLY 33.32
1 10.10029.00 FL-10-10029-00 CABLE ROD 410 ASSEMBLY 33.27
1 10.10032.00 FL-10-10032-00 CABLE ROD 450 ASSEMBLY 33.27
1 10.10035.00 FL-10-10035-00 CABLE ROD 470 ASSEMBLY 33.27
1 10.7683.00 FL-10-7683-00 CABLE ROD 365 ASSEMBLY 33.27
1 10.7685.00 FL-10-7685-00 CABLE ROD 320 ASSEMBLY 33.27
2 10.10660.00 FL-10-10660-00 CABLE ROD 450 RR ASSEMBLY 33.27
2 10.11769.00 FL-10-11769-00 CABLE ROD 365 RR ASSEMBLY 36.96
3 10.13516.00 FL-10-13516-00 TIE ROD 300 RR ASSEMBLY 36.96
4 10.12623.00 FL-10-12623-00 TIE RODS L=300 C28, ASSEMBLY 36.96
4 10.12626.00 FL-10-12626-00 TIE RODS L=340 ASSEMBLY 36.96

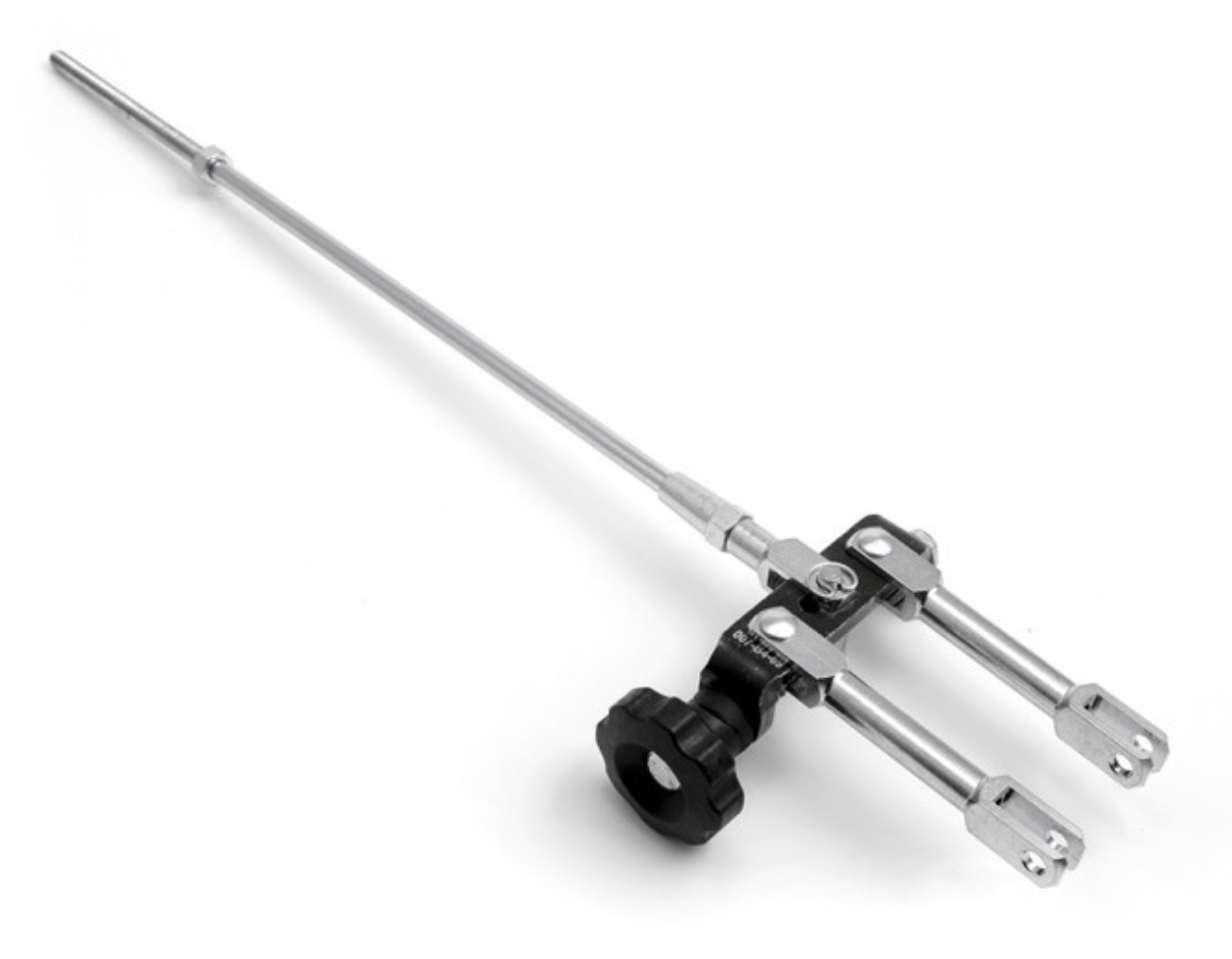

5 10.12712.00 FL-10-12712-00 BRAKE ADJUST ASSEMBLY 73.9
6 20.0908.06 FL-20-0908-06 SPRING 7x100 1.25
7 20.0875.10-LU FL-20-0875-10-LU KNOB 3.71
8 40.0217.00 FL-40-0217-00 CIRCLIP 3,1x11x1 0.63
9 40.5182.00 FL-40-5182-00 SPLIT PIN 1,5x12 UNI 1336 0.63
10 40.7072.00 FL-40-7072-00 WASHER 5x9x0,5 0.63
11 20.15055.06-ZN FL-20-15055-06-ZN PIN TC 5X13.5 1.86
13 20.11329.06 FL-20-11329-06 BRAKE TIE ROD 6X98.5 12.33
14 20.1151.06 FL-20-1151-06 TIE ROD FORK 5.45
15 20.1946.06 FL-20-1946-06 SHAPED NUT M6 RIGHT 2.48
16 20.11896.06 FL-20-11896-06 TIE ROD L=300 8.02
16 20.12625.06 FL-20-12625-06 TIE ROD L=340 8.02
17 10.12877.00 FL-10-12877-00 BRAKE ADJUST 36.96
18 20.12710.18-NE FL-20-12710-18-NE KNOB BRAKE ADJUST 2.48
19 20.12772.18-NE FL-20-12772-18-NE STOP KNOB BRAKE ADJUST 1.24
20 40.12773.00 FL-40-12773-00 WASHER 8X33 FIL 1,25 4.94
21 20.3288.06 FL-20-3288-06 PIN BROKING REGULATOR 3.7

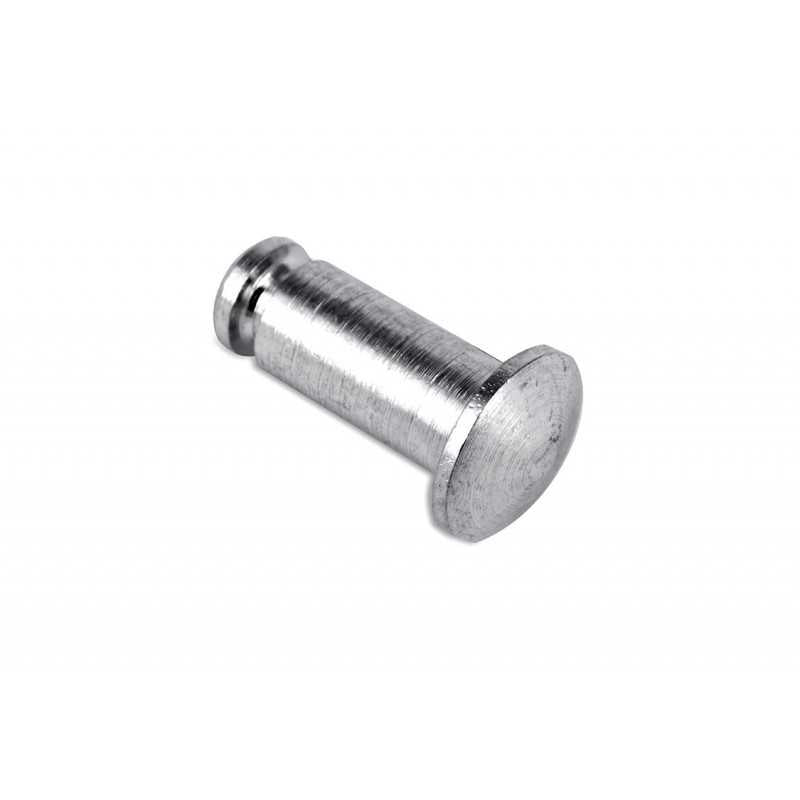

22 20.12715.06 FL-20-12715-06 PIN TC 5X12,5 2.48
23 40.12813.00 FL-40-12813-00 CUP SPRING 6.2x15x0.7 DIN 2093 0.63
24 40.9019.00 FL-40-9019-00 LOCK NUT M6 A.T. 0.63
