Freeline Brake Calipers B-I32X2
Freeline Brake Calipers B-I32X2
Parts diagram
Freeline Brake Calipers B-I32X2 parts diagram
Find your part by its number on the drawing, then add it straight to your basket from the matching list.
Other Synergy / Freeline parts diagrams (36)ShowHide
Accessories
Brake Master Cylinder
Rear Brake Caliper
Brake Systems
Brake Systems "R"
Brake Tie Rods
Engine Mounts
Exhaust Support
Exhaust Support Rotax Max
Floor Panel
Axle Bearing Carrier
Axles
Bearings
Disc Carrier
Sprocket Carrier
Hubs
Pedals
Pedals Hi Tech
Petrol Tank
Seats And Supports
Steering
Spindles
Spindles - Screw M8 (Birel ART)
Steering Tie Rods
Steering Wheel
Sportswear
Freeline Stickers
Freeline Thermic Set - Water Tube
Freeline Thermic Set Water Pump
Freeline Wheels "F"
Freeline Wheels "H"
Freeline Wheels "M"
Freeline Wheels "R"
KG 509 Bodywork
Front Bumper
Side Pods Support
| Pos. | FREELINE PART NUMBER | KKC SKU | Description | RRP |
|---|---|---|---|---|

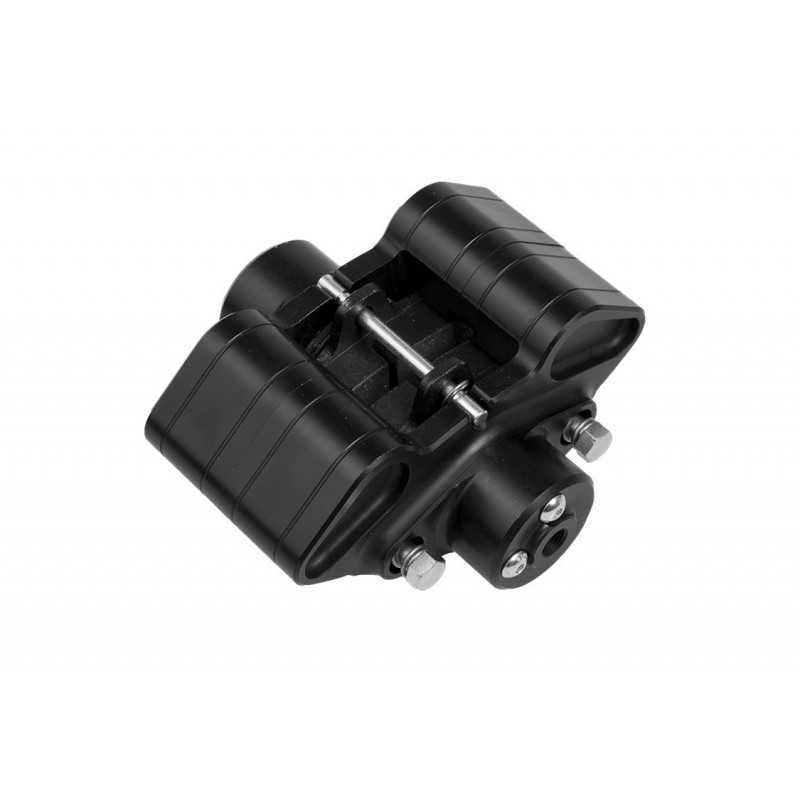

| 1 | 10.12331.00 | FL-10-12331-00 | BRAKE CALIPER B-I32x2H8 ASSEMBLY | 204.43 |
| 2 | 20.1406.06 | FL-20-1406-06 | BRAKE PAD SCREW | 1.86 |
| 3 | 20.0911.06 | FL-20-0911-06 | SPRING BRAKE PAD SCREW | 1.25 |
| 4 | 40.0985.00 | FL-40-0985-00 | CUP SEAL 32 EPDM | 1.86 |
| 5 | 20.0868.10-OR | FL-20-0868-10-OR | PISTON I32 | 4.94 |
| 6 | 20.0869.20 | FL-20-0869-20 | BOOT 32 | 1.24 |
| 7 | 10.12942.00 | FL-10-12942-00 | REAR BRAKE PAD 90x16 BOX (n.12) | 223.4 |
| 7 | 10.15677.00 | FL-10-15677-00 | REAR BRAKE PAD 90x16 | 18.61 |
| 8 | 20.0900.06 | FL-20-0900-06 | PIN 5x66 | 1.25 |
| 9 | 40.0217.00 | FL-40-0217-00 | CIRCLIP 3,1x11x1 | 0.63 |
| 10 | 10.12990.00 | FL-10-12990-00 | SAFETY STOP BUSHING PIN FOR PAD ASSEMBLY | 3.71 |
| 11 | 40.3483.00 | FL-40-3483-00 | OR 5x1 EPDM | 0.63 |
| 12 | 10.1734.00 | FL-10-1734-00 | OVERHAUL KIT I32x2 | 17.25 |
