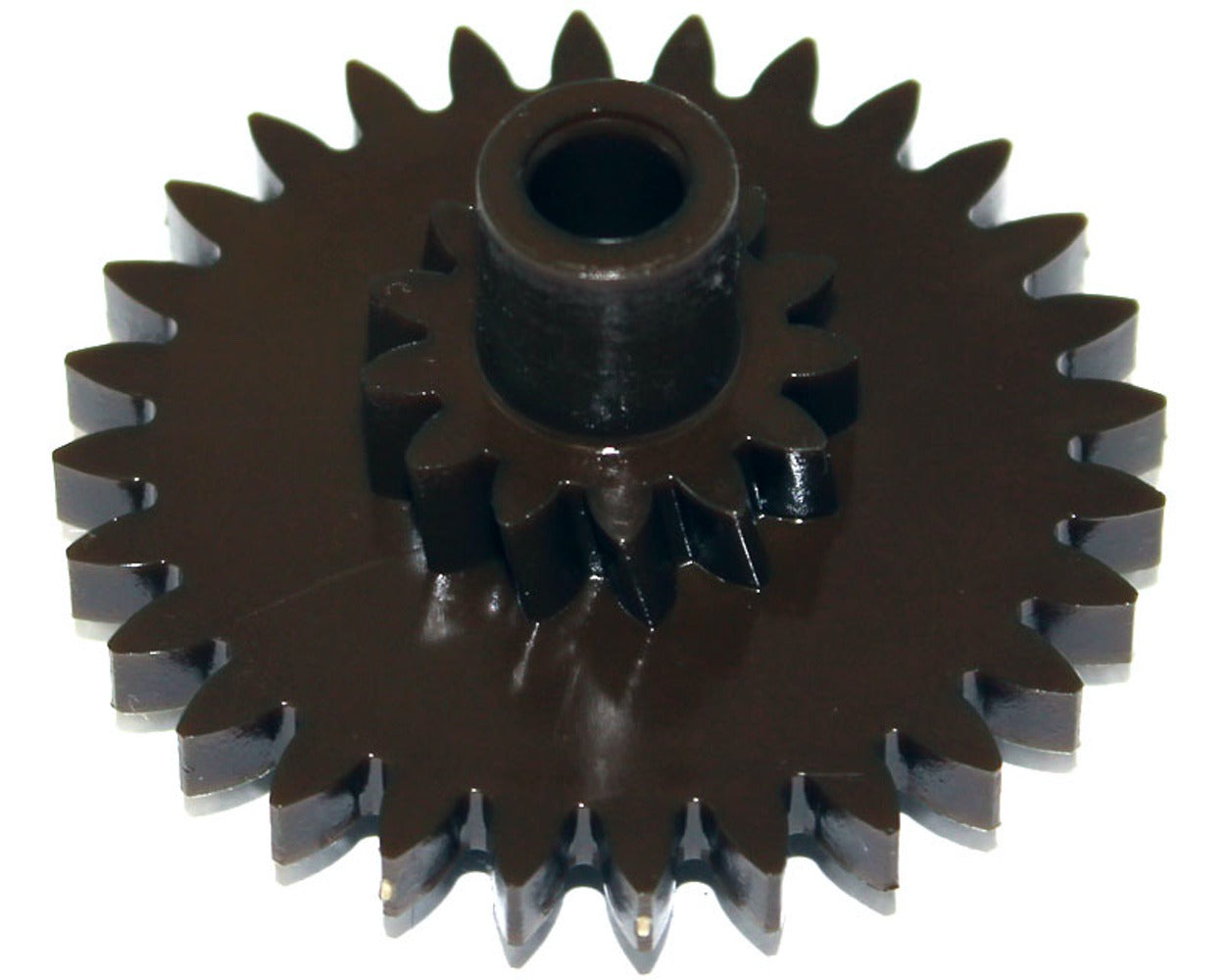

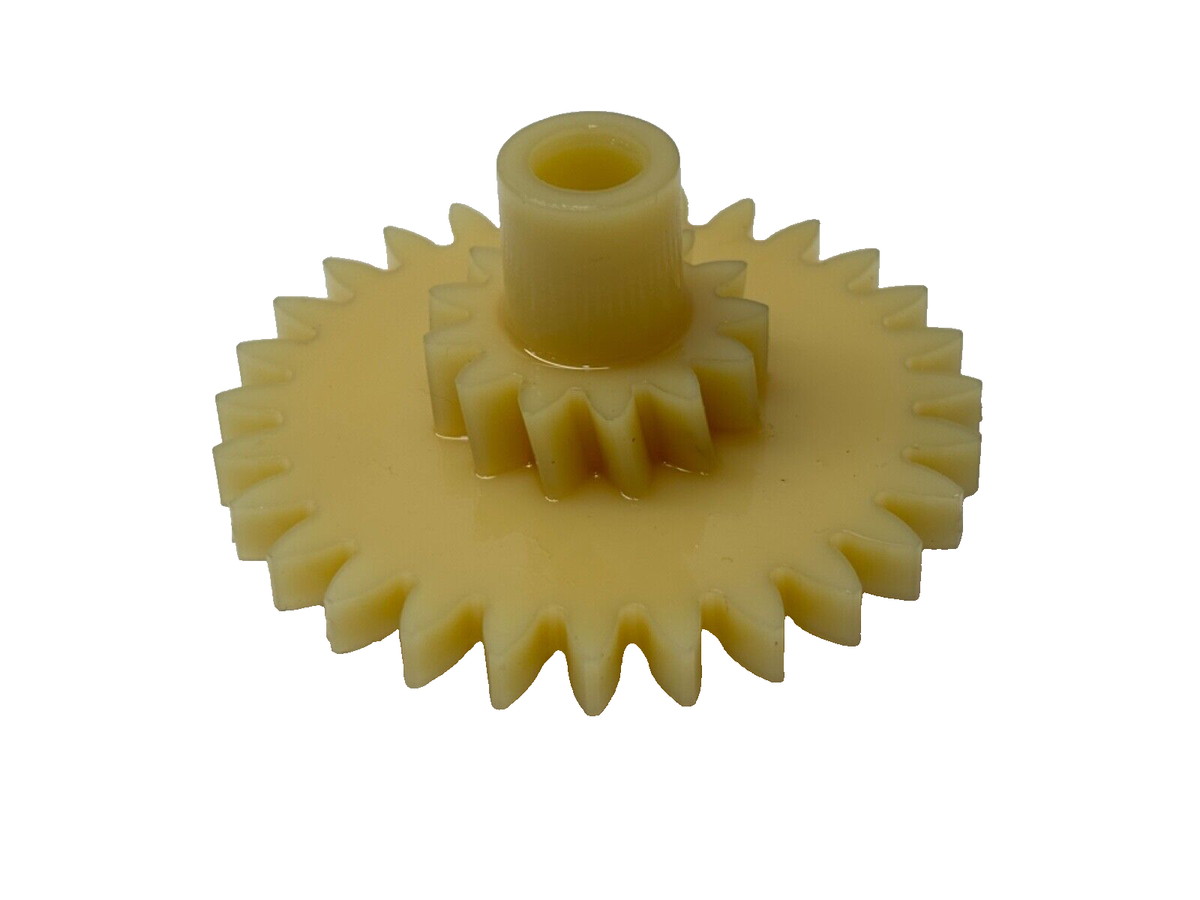

Rotax Max Idle Gear 28/13T
SKU:634035
Sale
Sold out
Ex VAT:
£10.95
£13.14
Inc VAT
Shipping calculated at checkout.
Only 9 units left
Couldn't load pickup availability
Part of the Rotax Max Crankshaft, Piston, Balance Shaft, Drive Shaft & Water Pump Drive diagram
See the other 8 parts in this group · add what else you need
View all 9 in Rotax Max Crankshaft, Piston, Balance Shaft, Drive Shaft & Water Pump Drive →
View the Rotax Max Crankshaft, Piston, Balance Shaft, Drive Shaft & Water Pump Drive parts diagram →Numbered drawing · find your part and add it from the listLoading parts…
| # | Part number | Description | Also stocked as |
|---|---|---|---|
| 1 | 685096 | CRANKSHAFT ASSY. | |
| 3 | 237948 | BALANCE SHAFT | |
| 7 | 430460 | O-RING 18X3.5 | |
| 8 | 234435 | BALANCE GEAR 50 T | |
| 9 | 635850 | WATER PUMP GEAR 19 T | |
| 10 | 945664 | RETAINING RING WITH LUG 20X1.2 | |
| 11 | 827590 | THRUST WASHER 10.1/17/1 | |
| 12 | 232732 | NEEDLE PIN 4X15.8 | |
| 13 | 234415 | WATER PUMP PINION 16 T | |
| 15 | 634035 | IDLE GEAR 28/13 T | |
| 16 | 650476 | GEAR COVER GASKET | 650470 |
| 17 | 211875 | GEAR COVER | |
| 18 | 230415 | SEALING RING A 6X10 | |
| 19 | 840866 | ALLEN SCREW M6X25 | |
| 20 | 840888 | ALLEN SCREW M6X30 | |
| 21 | 932027 | NEEDLE CAGE K 15X19X20 | |
| 22 | 295509 | PISTON ASSY. 53.92 MM | |
| 22 | 295510 | PISTON ASSY. 53.93 MM | |
| 22 | 295511 | PISTON ASSY. 53.94 MM | |
| 22 | 295512 | PISTON ASSY. 53.95 MM | |
| 22 | 295513 | PISTON ASSY. 53.96 MM | |
| 22 | 295514 | PISTON ASSY. 53.97 MM | |
| 22 | 295515 | PISTON ASSY. 53.98 MM | |
| 23 | 215548 | PISTON RING 54/49.4X1 | |
| 24 | 216135 | PISTON PIN 15X10/12.5X45.6 | |
| 25 | 945635 | CIRCLIP 15 | |
| 26 | 685011 | CRANKSHAFT REPAIR KIT |
Part numbers from the Rotax 125 MAX evo illustrated parts catalogue (MY23).
Parts diagram
About this Product
- Idle Gear 28/13T
