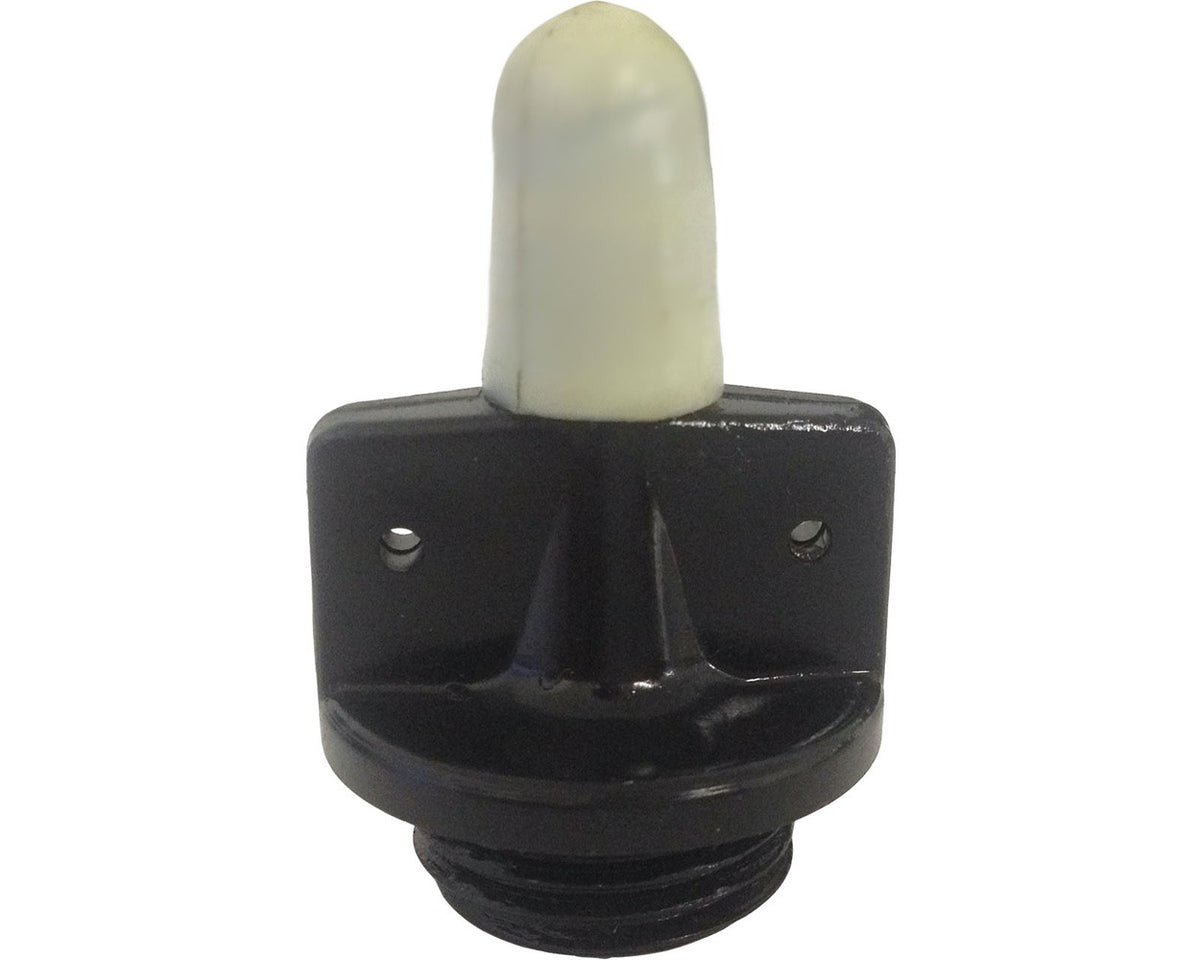

Rotax Max Air Vent Screw M18 X 1.5
SKU:241925
Sale
Sold out
Ex VAT:
£2.03
£2.44
Inc VAT
Shipping calculated at checkout.
Only 7 units left
Couldn't load pickup availability
Part of the Rotax Max Crankcase, Water Pump, E-Starter & Chain Guard diagram
See the other 12 parts in this group · add what else you need
View all 13 in Rotax Max Crankcase, Water Pump, E-Starter & Chain Guard →
View the Rotax Max Crankcase, Water Pump, E-Starter & Chain Guard parts diagram →Numbered drawing · find your part and add it from the listLoading parts…
Exploded Parts Diagram
| # | PART# | DESCRIPTION |
|---|---|---|
| 1 | 295915 | CRANK CASE ASSY. Ill.no. 1-3 Black coated |
| 2 | 632010 | PIN 8X12 DIN 5402 |
| 3 | 427572 | COVER 20 DIN 443 VZD B 20 |
| 4 | 230425 | OIL SEAL AS 28X38X7 NBR |
| 5 | 930675 | OIL SEAL AS 25X38X7 NBR |
| 6 | 832583 | COVER 20 DIN 443 VZD B 20 |
| 7 | 232291 | CRANK CASE ASSY. Ill.no. 4-7 Black coated |
| 8 | 232341 | PIN 8X12 DIN 5402 |
| 9 | 227280 | COVER 20 DIN 443 VZD B 20 |
| 10 | 940316 | OIL SEAL AS 28X38X7 NBR |
| 11 | 229380 | OIL SEAL AS 25X38X7 NBR |
| 12 | 230195 | COVER 20 DIN 443 VZD B 20 |
| 13 | 220515 | PIN 8X12 DIN 5402 |
| 14 | 241823 | CRANK SHAFT COMPLETE |
| 15 | 240373 | ROLLER BEARING 6203 |
| 16 | 232276 | ROLLER BEARING 6204 |
| 17 | 227945 | NEEDLE BEARING HK 1012 |
| 18 | 294812 | SPROCKET 19T |
| 19 | 260772 | SPROCKET 20T |
| 20 | 840888 | CHAIN GUARD LH |
| 21 | 224094 | CHAIN GUARD RH |
| 22 | 940787 | WATER PUMP COVER |
| 23 | 241387 | IMPELLER ASSEMBLY |
| 24 | 241382 | GASKET SET |
| 25 | 241925 | E-STARTER MOTOR |
| 26 | 960770 | PINION GEAR |
| 27 | 296160 | SPRING, E-STARTER |
| 28 | 241382 | STUD M8X28/20 Tightening torque 5 Nm |
| 29 | 241925 | AIR VENT SCREW M18X1.5 |
| 30 | 960770 | CLOSURE CAP FOR IMPULSE JOINT |
| 31 | 296160 | ENGINE GASKET SET ASSY. Oil seal (Chap. 04. Pos. 8) not included |
Parts diagram
About this Product
- Filler Cap for rotax max gear casing. Vent to atmosphere to prevent pressure build up
