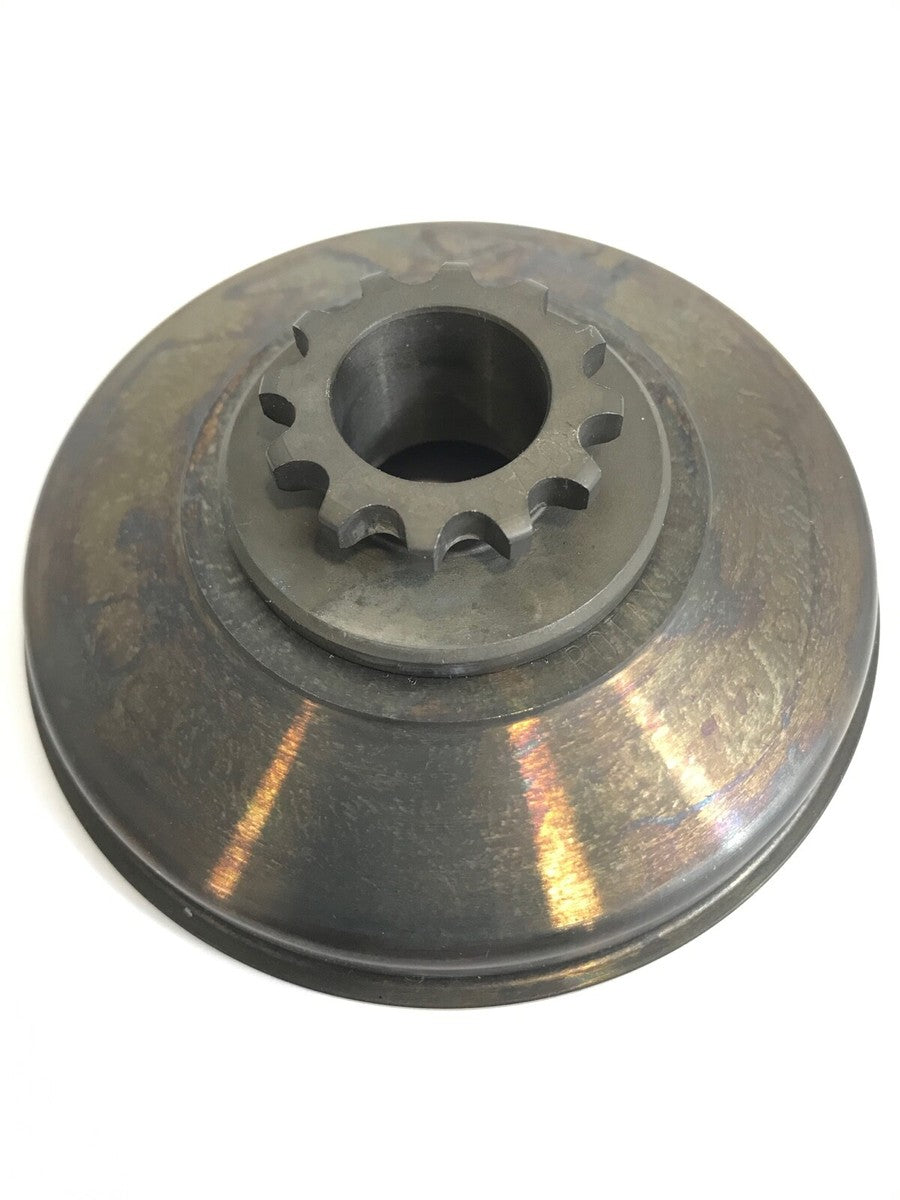

Rotax Complete Drum Assembly (No washers/bearing)
SKU:236511
Sale
Sold out
Ex VAT:
£80.68
£96.82
Inc VAT
Shipping calculated at checkout.
10+ in stock
Couldn't load pickup availability
Part of the Rotax Max Clutch diagram
See the other 21 parts in this group · add what else you need
View all 22 in Rotax Max Clutch →
View the Rotax Max Clutch parts diagram →Numbered drawing · find your part and add it from the listLoading parts…
| # | Part number | Description | Also stocked as |
|---|---|---|---|
| 1 | 434840 | STARTER GEAR 70 T | |
| 2 | 842319 | HEX. NUT M20X1.5 | 842310 |
| 3 | 659907 | CENTRIFUGAL CLUTCH ASSY. | |
| 4 | 840036 | ALLEN SCREW M6X12 DIN 912 | |
| 5 | 236877 | SPROCKET 11 T | |
| 5 | 636021 | SPROCKET 12 T | |
| 5 | 636022 | SPROCKET 13 T | |
| 5 | 636023 | SPROCKET 14 T | |
| 5 | 636024 | SPROCKET 15 T | |
| 5 | 636025 | SPROCKET 16 T | |
| 6 | 232365 | NEEDLE PIN 5X5 | |
| 7 | 659939 | CLUTCH DRUM | 659930 |
| 8 | 242925 | HEX. NUT M28X1 HEIGHT 4.6 | |
| 9 | 233855 | PLAIN BEARING 15X17X17.6 | 233850 |
| 10 | 632415 | NEEDLE CAGE K 15X19X17 | |
| 11 | 950815 | O-RING 12X2.5 | |
| 12 | 927057 | THRUST WASHER 15.2/25/1 | 927050 |
| 13 | 627340 | THRUST WASHER 10/22/1.5 | |
| 13 | 627345 | THRUST WASHER 10/19/1.5 | |
| 14 | 942951 | HEX. NUT M10X1 | 942950 |
| 19 | 281721 | RETROFIT KIT CLUTCH 125 MAX |
Part numbers from the Rotax 125 MAX evo illustrated parts catalogue (MY23).
