SKU GX160A
Honda GX160 RT2 QHG4 19.05mm
by Honda
Original price
£267.65
-
Original price
£267.65
Original price
£267.65
£267.65
-
£267.65
Current price
£267.65
Availability:
Only 7 left!

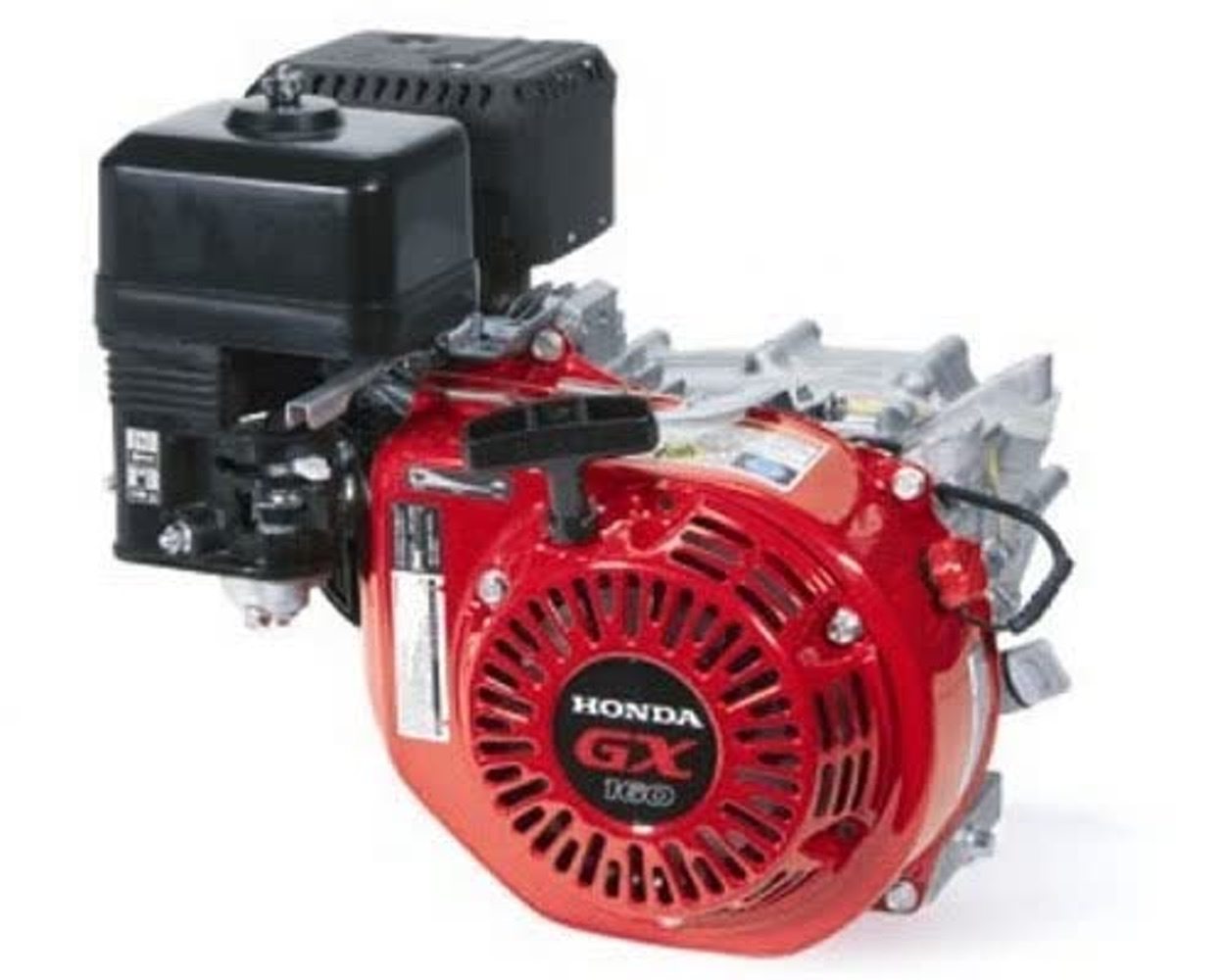

Horizontal air-cooled Honda petrol engines GX160
This type is equipped as standard with a recoil starter, reinforced exhaust and reinforced valve springs. Ideal for karting! Below we have listed the technical properties for you. In the appendix you will find a specification booklet.
Technical properties:
Brand: Honda
Fashion model: GX160RT2 QH G4
Engine Type: air-cooled OHV petrol engine with horizontal output shaft
Axle size: 19.05 mm
Cylinder sleeve material: cast iron
Cylinder inclination: 25°
Bore x stroke: 68 x 45 mm
Cylinder capacity: 163 cm3
Compression: 9:1
Net power: 4.8 hp (3.6 kW) / 3600 rpm
Continuous rated power: 3.4 hp (2.5 kW) - 3600 rpm / 3.9 hp (2.9 kW) - 3600 rpm
Just. Torque: 10.3 Nm / 2500 rpm
Ignition: electronic ignition
Starting system: recoil starter
Tank capacity: 3.1 liters
Fuel consumption at continuous nominal. power: 1.4 l/h - 3600 rpm
Engine oil capacity: 0.6 l
Dimensions (LxWxH): 312 x 362 x 346 mm
Dry weight: 15.1 kg
