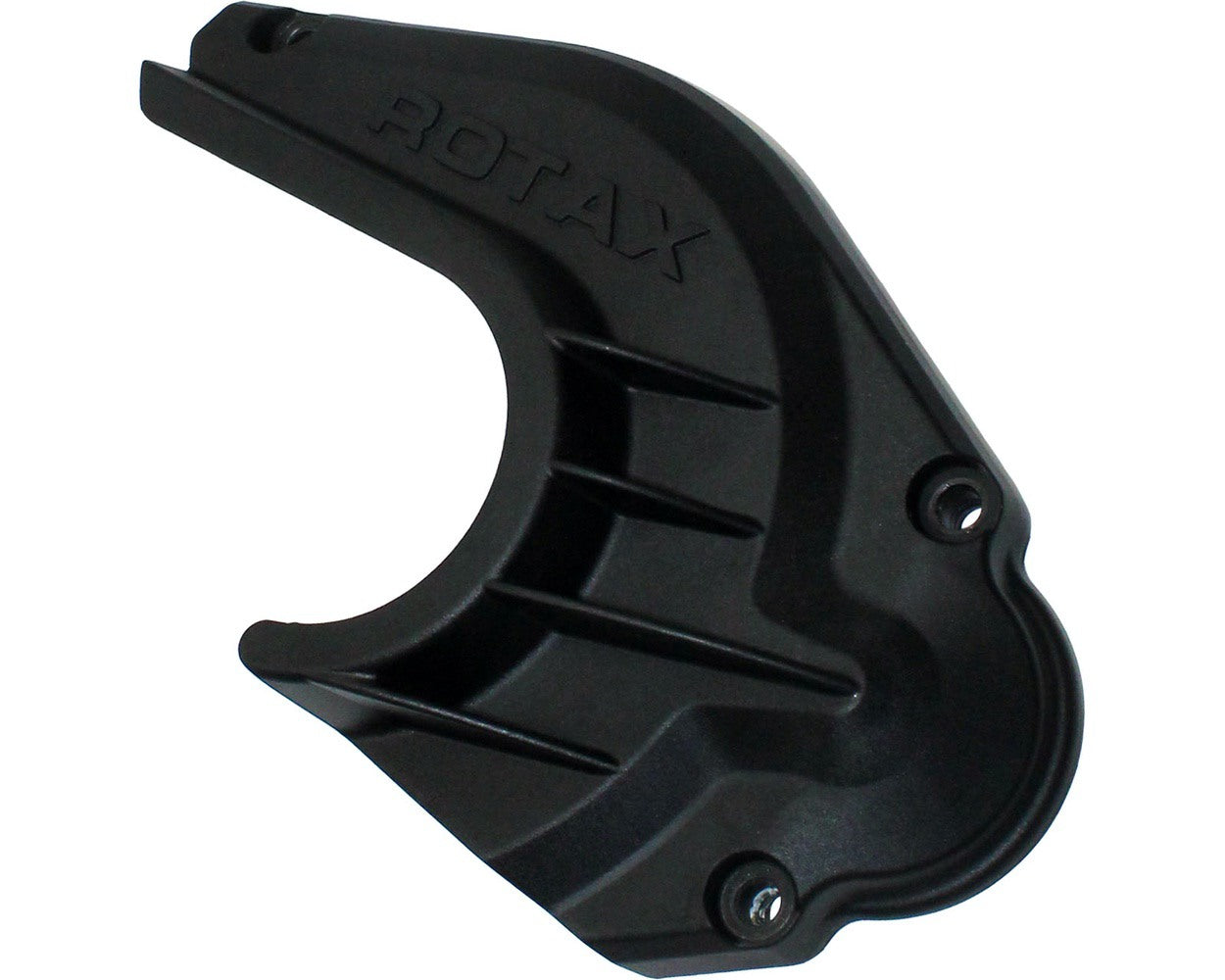

Rotax Max Plastic Chain And Clutch Guard
SKU:260772
Sale
Sold out
Ex VAT:
£26.30
£31.56
Inc VAT
Shipping calculated at checkout.
10+ in stock
Couldn't load pickup availability
Part of the Rotax Max Crankcase, Water Pump, E-Starter & Chain Guard diagram
See the other 11 parts in this group · add what else you need
View all 12 in Rotax Max Crankcase, Water Pump, E-Starter & Chain Guard →

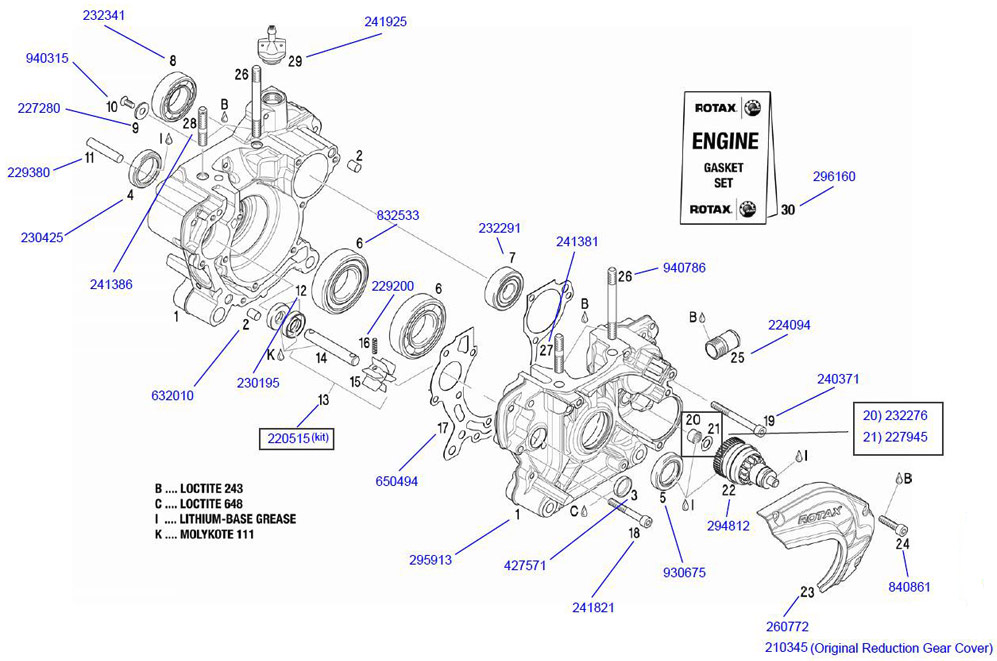

View the Rotax Max Crankcase, Water Pump, E-Starter & Chain Guard parts diagram →Numbered drawing · find your part and add it from the listLoading parts…
| # | Part number | Description | Also stocked as |
|---|---|---|---|
| 1 | 295915 | CRANK CASE ASSY. | |
| 2 | 632010 | PIN 8X12 | |
| 3 | 427572 | COVER 20 | |
| 4 | 230425 | OIL SEAL AS 28X38X7 | |
| 5 | 930675 | OIL SEAL AS 25X38X7 | |
| 6 | 832583 | BALL BEARING 6206 | |
| 7 | 232291 | BALL BEARING 6302 | |
| 8 | 232341 | BALL BEARING 6005 | |
| 9 | 227280 | THRUST WASHER | |
| 10 | 940316 | COUNTERSUNK SCREW M5X12 | |
| 11 | 229380 | LOCATING PIN M6X40 | |
| 12 | 230195 | OIL SEAL A 10X26X7 | |
| 13 | 220515 | WATER PUMP SHAFT ASSY. | |
| 16 | 229200 | DOWEL 4X16 | |
| 17 | 650494 | CRANKCASE GASKET | |
| 18 | 241823 | ALLEN SCREW M6X45 | |
| 19 | 240373 | ALLEN SCREW M6X60 | |
| 20 | 232276 | NEEDLE BUSHING 8X12X8 | |
| 21 | 227945 | THRUST WASHER 8.5/15/0.5 | |
| 22 | 294812 | STARTER REDUCTION GEAR ASSY. | 294810 |
| 23 | 260772 | CHAIN PROTECTION | |
| 24 | 840888 | ALLEN SCREW M6X30 | |
| 25 | 224094 | WATER PIPE TUBE | |
| 26 | 940787 | STUD M8X57/20 | |
| 27 | 241387 | STUD M8X28/20 | |
| 28 | 241382 | STUD M8X28/20 | |
| 29 | 241925 | AIR VENT SCREW M18X1.5 | |
| 30 | 960770 | CLOSURE CAP FOR IMPULSE JOINT | |
| 31 | 296160 | ENGINE GASKET SET ASSY. |
Part numbers from the Rotax 125 MAX evo illustrated parts catalogue (MY23).

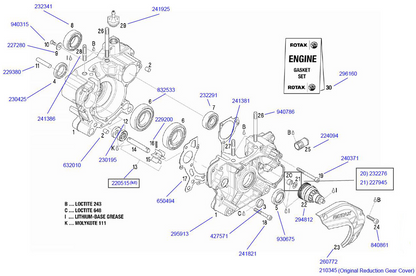

Parts diagram
About this Product
Rotax Max Plastic Chain And Clutch Guard
