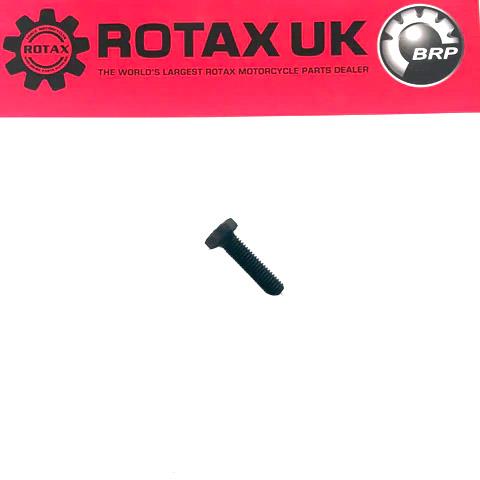

Rotax Max Hex Screw Combustion Insert M8x30mm Din 933 10.9

Name: Rotax Max Hex Screw Combustion Insert M8x30mm Din 933 10.9
Brand: Rotax
SKU: 940487
Price: 0.49 GBP
Availability: InStock

SKU:940487

Sale Sold out

£0.78

Ex VAT: £0.49

£0.59 Inc VAT

Shipping calculated at checkout.

10+ in stock

Quantity

Part of the Rotax Max Cylinder diagram

See the other 19 parts in this group · add what else you need

View the Rotax Max Cylinder parts diagram →Numbered drawing · find your part and add it from the list

Loading parts…

About this Product

940485 - Hex Screw/Bolt - M8x30mm DIN 933 - 35Nm Torque (940487) for engine types: 120, 154, 348, 504, 560, 604, 605, 655.

#	Part number	Description	Also stocked as
1	431337	CYLINDER BASE GASKET 0.2 MM
1	650480	CYLINDER BASE GASKET 0.3 MM
1	650483	CYLINDER BASE GASKET 0.4 MM
1	650481	CYLINDER BASE GASKET 0.5 MM
1	650482	CYLINDER BASE GASKET 0.8 MM
2	613372	CYLINDER NI SI C PLATED
2	223991	CYLINDER NI SI C PLATED
3	242707	COLLAR NUT M8	242706
4	250160	O-RING 64X2
5	223386	COMBUSTION CHAMBER INSERT
6	945832	LOCK WASHER A8
7	940487	HEX. SCREW M8X30
8	430782	O-RING 23.3X2.4
9	250280	O-RING 105X2.5
10	613104	CYLINDER HEAD COVER RED
11	222125	THERMOSTAT 45 DEG
12	222175	THERMOSTAT HOLDER
13	239950	COMPRESSION SPRING
14	222202	THERMOSTAT RETAINING BRACKET
15	240196	TAPTITE SCREW M4X8
16	641323	PLUG SCREW M10X1
17	241935	ALLEN SCREW M6X20
18	641361	ALLEN SCREW M6X25
19	250523	REED VALVE GASKET	250521
20	224380	REED VALVE ASSY.
20	224389	REED VALVE ASSY.
22	224431	REED PETAL	224430
24	240351	OVAL HEAD SCREW M3X6
24	241035	TORX SCREW 3X6
25	267916	CARBURETTOR FLANGE 42.5 MM
26	840866	ALLEN SCREW M6X25
27	641361	ALLEN SCREW M6X25
28	251850	HOSE CLAMP 51
29	250271	EXHAUST FLANGE GASKET
30	273190	EXHAUST SOCKET
31	273196	EXHAUST SOCKET 22 MM
32	273192	EXHAUST SOCKET
33	240072	ALLEN SCREW M8X20
34	450360	EXHAUST GASKET
35	250315	WASHER 8
36	942674	HEX. NUT M8
37	626420	RESTRICTION PLATE
38	296161	GASKET SET ASSY. CYLINDER
