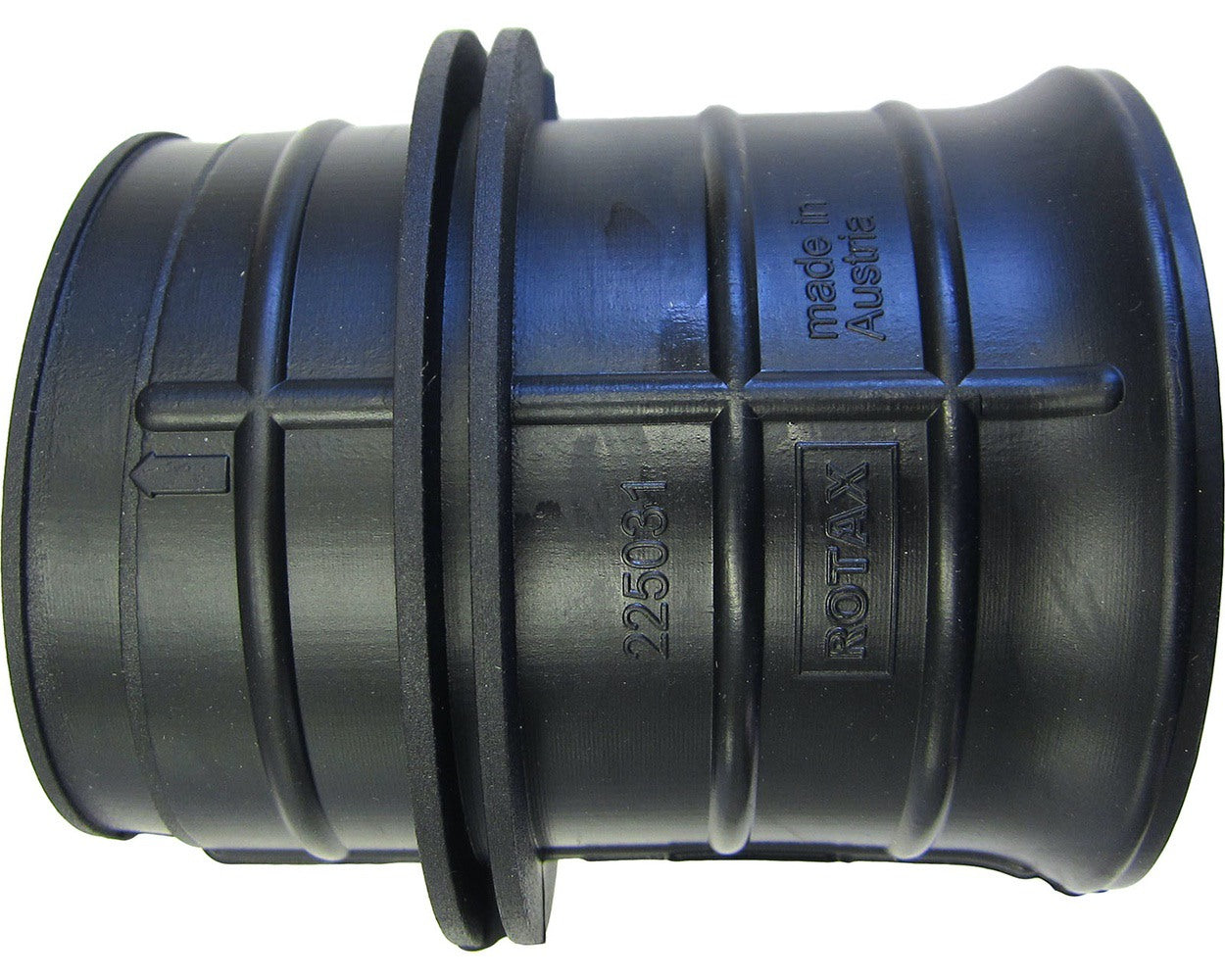

Rotax Max Genuine Air Box to Carburetor Tube 225031
SKU:225040
Sale
Sold out
Ex VAT:
£10.79
£12.95
Inc VAT
Shipping calculated at checkout.
Only 5 units left
Couldn't load pickup availability
Part of the Rotax Max Airbox diagram
See the other 10 parts in this group · add what else you need
View all 11 in Rotax Max Airbox →
View the Rotax Max Airbox parts diagram →Numbered drawing · find your part and add it from the listLoading parts…
| # | Part number | Description | Also stocked as |
|---|---|---|---|
| 1 | 225015 | INTAKE SILENCER CASE, BOTTOM | |
| 2 | 225041 | INTAKE SILENCER TUBE | |
| 3 | 225061 | HOLDER FOR FILTER ELEMENT | 225060 |
| 4 | 225053 | FILTER ELEMENT | |
| 5 | 225025 | INTAKE SILENCER CASE, TOP | |
| 6 | 225031 | CARBURETTOR SOCKET | |
| 7 | 242141 | SHEET NUT M6 | |
| 8 | 251720 | SUPPORT BRACKET | |
| 9 | 244211 | WASHER 6.4 | |
| 10 | 241935 | ALLEN SCREW M6X20 | |
| 11 | 951791 | CLAMP 50-70 | 951790 |
Part numbers from the Rotax 125 MAX evo illustrated parts catalogue (MY23).

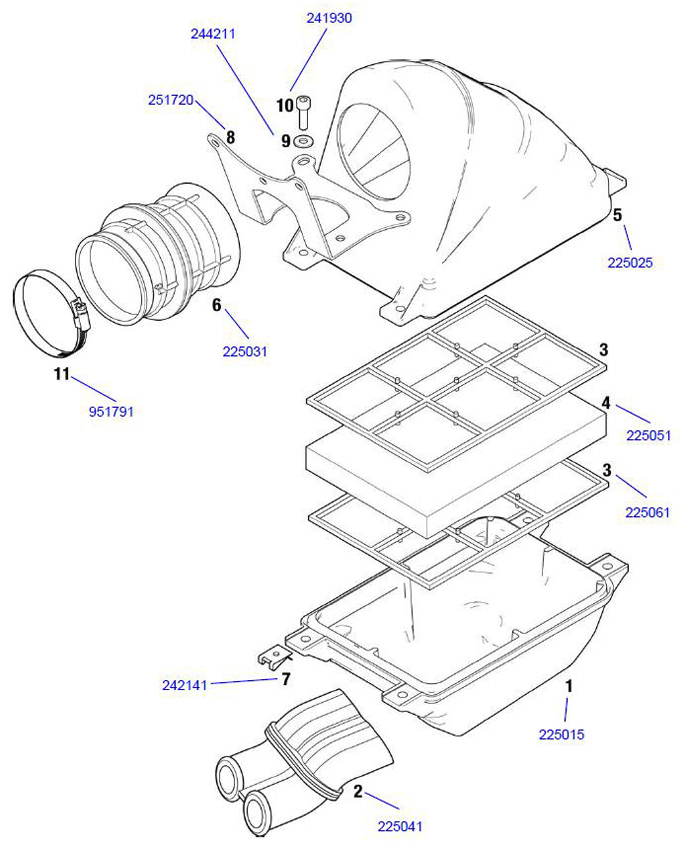

Parts diagram
About this Product
Rotax Max Air Box To Carburettor Rubber Tube 225031
