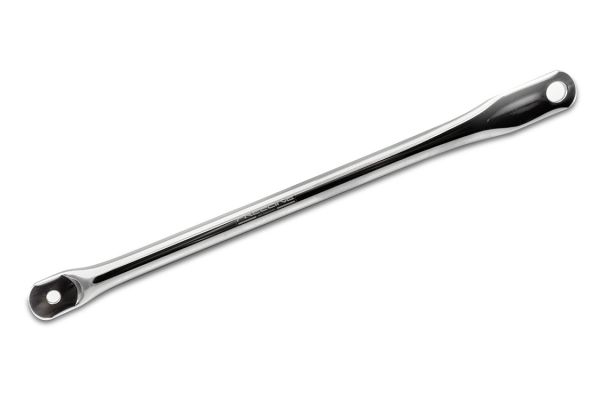

Freeline Genuine Additional Seat Stay Support
SKU:FL-20-1460-06-CR
Sale
Sold out
Ex VAT:
£8.02
£9.62
Inc VAT
Shipping calculated at checkout.
Only 3 units left
Couldn't load pickup availability
Out of stock? We'll email you the moment it's back.
One email, no spam — with a link to add it straight to your basket.
Part of the Freeline Seats And Supports diagram
See the other 6 parts in this group · add what else you need
View all 7 in Freeline Seats And Supports →Browse the full Freeline / Birel ART diagram →
View the Freeline Seats And Supports parts diagram →Numbered drawing · find your part and add it from the listLoading parts…
| Pos. | FREELINE PART NUMBER | KKC SKU | Description | RRP |
|---|---|---|---|---|
| 1 | 40.16876.00 | FL-40.16876.00 | SEAT F12 SILVER | 102.95 |
| 2 | 10.5155.00 | FL-10-5155-00 | SEAT MOUNTING KIT | 10.6 |
| 3 | 10.2577.00 | FL-10-2577-00 | SEAT WASHER GROUP | 6.18 |
| 4 | 20.3614.10-LU | FL-20-3614-10-LU | WASHER COUNTERSUNK M8 | 2.48 |
| 5 | 20.3615.10-LU | FL-20-3615-10-LU | WASHER COUNTERSUNK M6 | 2.48 |
| 6 | 20.1456.06-CR | FL-20-1456-06-CR | ADDITIONAL SUPPORT L 220 | 8.02 |
| 6 | 20.1457.06-CR | FL-20-1457-06-CR | ADDITIONAL SUPPORT L 240 | 8.02 |
| 6 | 20.1458.06-CR | FL-20-1458-06-CR | ADDITIONAL SUPPORT L 260 | 8.02 |
| 6 | 20.1459.06-CR | FL-20-1459-06-CR | ADDITIONAL SUPPORT L 280 | 8.02 |
| 6 | 20.1460.06-CR | FL-20-1460-06-CR | ADDITIONAL SUPPORT L 300 | 8.02 |
| 6 | 20.1460.06-CR | FL-20-1460-06-CR | ADDITIONAL SUPPORT L 300 | 8.02 |
| 6 | 20.1461.06-CR | FL-20-1461-06-CR | ADDITIONAL SUPPORT L 320 | 8.02 |
| 6 | 20.1461.06-CR | FL-20-1461-06-CR | ADDITIONAL SUPPORT L 320 | 8.02 |
| 6 | 20.1462.06-CR | FL-20-1462-06-CR | ADDITIONAL SUPPORT L 340 | 8.02 |
| 6 | 20.1462.06-CR | FL-20-1462-06-CR | ADDITIONAL SUPPORT L 340 | 8.02 |
| 6 | 20.1463.06-CR | FL-20-1463-06-CR | ADDITIONAL SUPPORT L 360 | 8.02 |
| 6 | 20.1463.06-CR | FL-20-1463-06-CR | ADDITIONAL SUPPORT L 360 | 8.02 |
| 6 | 20.1464.06-CR | FL-20-1464-06-CR | ADDITIONAL SUPPORT L 380 | 8.02 |
| 6 | 20.1464.06-CR | FL-20-1464-06-CR | ADDITIONAL SUPPORT L 380 | 8.02 |
| 6 | 20.1465.06-CR | FL-20-1465-06-CR | ADDITIONAL SUPPORT L 400 | 8.02 |
| 6 | 20.1465.06-CR | FL-20-1465-06-CR | ADDITIONAL SUPPORT L 400 | 8.02 |
| 7 | 20.14312.06-CR | FL-20-14312-06-CR | ADDITIONAL SUPPORT L 300 CURVED | 12.33 |
| 7 | 20.14313.06-CR | FL-20-14313-06-CR | ADDITIONAL SUPPORT L 320 CURVED | 12.33 |
| 8 | 20.7145.10 | FL-20-7145-10 | WASHER SEAT 8X40X2 | 1.25 |
| 9 | 10.12951.00 | FL-10-12951-00 | SIDE PROTECTOR FOR SEAT ASSEMBLY | 24.64 |
Parts diagram
About this Product
Total length - fitting holes are 10mm away from edge of rod.
i.e. 300mm Support has 280mm distance fitting holes.
