Find your part on the kart

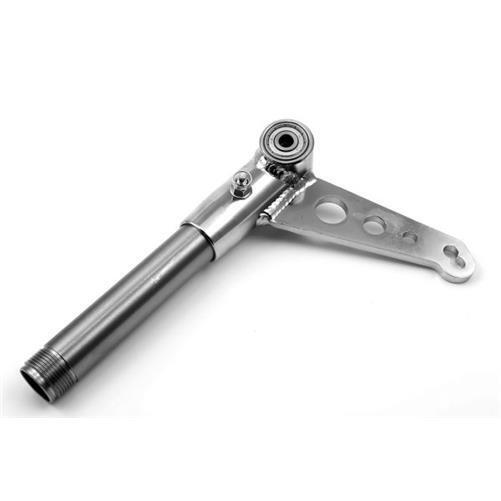

10° KF3 Freeline Spindle Assembly 10mm/25mm
SKU:FL-10-11656-00
Sale
Sold out
Ex VAT:
£143.60
£172.32
Inc VAT
Shipping calculated at checkout.
Couldn't load pickup availability
Out of stock? We'll email you the moment it's back.
One email, no spam — with a link to add it straight to your basket.
Part of the Freeline Spindles Diam.8 diagram
See the other 12 parts in this group · add what else you need
View all 13 in Freeline Spindles Diam.8 →Browse the full Freeline / Birel ART diagram →
View the Freeline Spindles Diam.8 parts diagram →Numbered drawing · find your part and add it from the listLoading parts…
| Pos. | FREELINE PART NUMBER | KKC SKU | Description | RRP |
|---|---|---|---|---|
| 1 | 10.11656.00 | FL-10-11656-00 | SPINDLE R.10° KF3 HOLE 8, ASSY. | 143.6 |
| 1 | 10.11657.00 | FL-10-11657-00 | SPINDLE L.10° KF3 HOLE 8, ASSY. | 143.6 |
| 2 | 10.11662.00 | FL-10-11662-00 | SPINDLE R.10° KZ ASSY. | 151.6 |
| 2 | 10.11662.00 | FL-10-11662-00 | SPINDLE R.10° KZ ASSY. | 151.6 |
| 2 | 10.11663.00 | FL-10-11663-00 | SPINDLE L.10° KZ ASSY. | 151.6 |
| 2 | 10.11663.00 | FL-10-11663-00 | SPINDLE L.10° KZ ASSY. | 151.6 |
| 3 | 10.13413.00 | FL-10-13413-00 | SPINDLE R. A-10x135-E/17 BIREL ART ASSY. | 110.84 |
| 3 | 10.13413.00 | FL-10-13413-00 | SPINDLE R. A-10x135-E/17 BIREL ART ASSY. | 110.84 |
| 3 | 10.13414.00 | FL-10-13414-00 | SPINDLE L. A-10x135-E/17 BIREL ART ASSY. | 110.84 |
| 3 | 10.13414.00 | FL-10-13414-00 | SPINDLE L. A-10x135-E/17 BIREL ART ASSY. | 110.84 |
| 4 | 10.12317.00 | FL-10-12317-00 | SPINDLE R. 10x150-E/17/32 BIRELART ASSY. | 110.84 |
| 4 | 10.12317.00 | FL-10-12317-00 | SPINDLE R. 10x150-E/17/32 BIRELART ASSY. | 110.84 |
| 4 | 10.12318.00 | FL-10-12318-00 | SPINDLE L. 10x150-E/17/32 BIRELART ASSY. | 110.84 |
| 4 | 10.12318.00 | FL-10-12318-00 | SPINDLE L. 10x150-E/17/32 BIRELART ASSY. | 110.84 |
| 4 | 10.12451.00 | FL-10-12451-00 | SPINDLE R. 10x165/E/17 ASSY. MOD. BIRELART | 110.84 |
| 4 | 10.12451.00 | FL-10-12451-00 | SPINDLE R. 10x165/E/17 ASSY. MOD. BIRELART | 110.84 |
| 4 | 10.12452.00 | FL-10-12452-00 | SPINDLE L. 10x165-E/17 ASSY. MOD. BIRELART | 110.84 |
| 4 | 10.12452.00 | FL-10-12452-00 | SPINDLE L. 10x165-E/17 ASSY. MOD. BIRELART | 110.84 |
| 5 | 20.11931.06 | FL-20-11931-06 | SPINDLE STEM 176 d.25 GOLD | 49.27 |
| 5 | 20.9061.06--B | FL-20-9061-06--B | SPINDLE STEM L176 B | 26.61 |
| 5 | 20.9061.06--B | FL-20-9061-06--B | SPINDLE STEM L176 B | 26.61 |
| 5 | 20.9061.06--F | FL-20-9061-06--F | SPINDLE STEM L176 F | 26.61 |
| 5 | 20.9061.06--F | FL-20-9061-06--F | SPINDLE STEM L176 F | 26.61 |
| 5 | 20.9061.06--K | FL-20-9061-06--K | SPINDLE STEM L176 K | 26.61 |
| 5 | 20.9061.06--K | FL-20-9061-06--K | SPINDLE STEM L176 K | 26.61 |
| 5 | 20.9061.06--M | FL-20-9061-06--M | SPINDLE STEM L176 M | 26.61 |
| 5 | 20.9061.06--M | FL-20-9061-06--M | SPINDLE STEM L176 M | 26.61 |
| 6 | 40.7998.00 | FL-40-7998-00 | BEARING 8X26X8 ZZ | 3.71 |
| 7 | 20.9797.18 | FL-20-9797-18 | WASHER 12x21,5x0,7 | 0.63 |
| 8 | 20.3891.06 | FL-20-3891-06 | SPACER 8x12x29 | 2.48 |
| 8 | 20.7999.06 | FL-20-7999-06 | SPACER SPINDLE 8x12x27.7 | 2.97 |
| 9 | DEA-M14PF | FL-DEA-M14PF | NUT UNI 7474 | 0.63 |
| 10 | AAE-11 | FL-AAE-11 | CIRCLIP UNI 7435 | 1.25 |
| 11 | 20.7657.06 | FL-20-7657-06 | LOCK NUT PN. M 25x1,5 | 6.18 |
| 12 | AAE-23 | FL-AAE-23 | CIRCLIP DIN 471 (UNI 7435-75) | 0.63 |
| 13 | 10.14152.00 | FL-10-14152-00 | SPINDLE EXTENSION KF3, ASSY. | 36.96 |
Parts diagram
