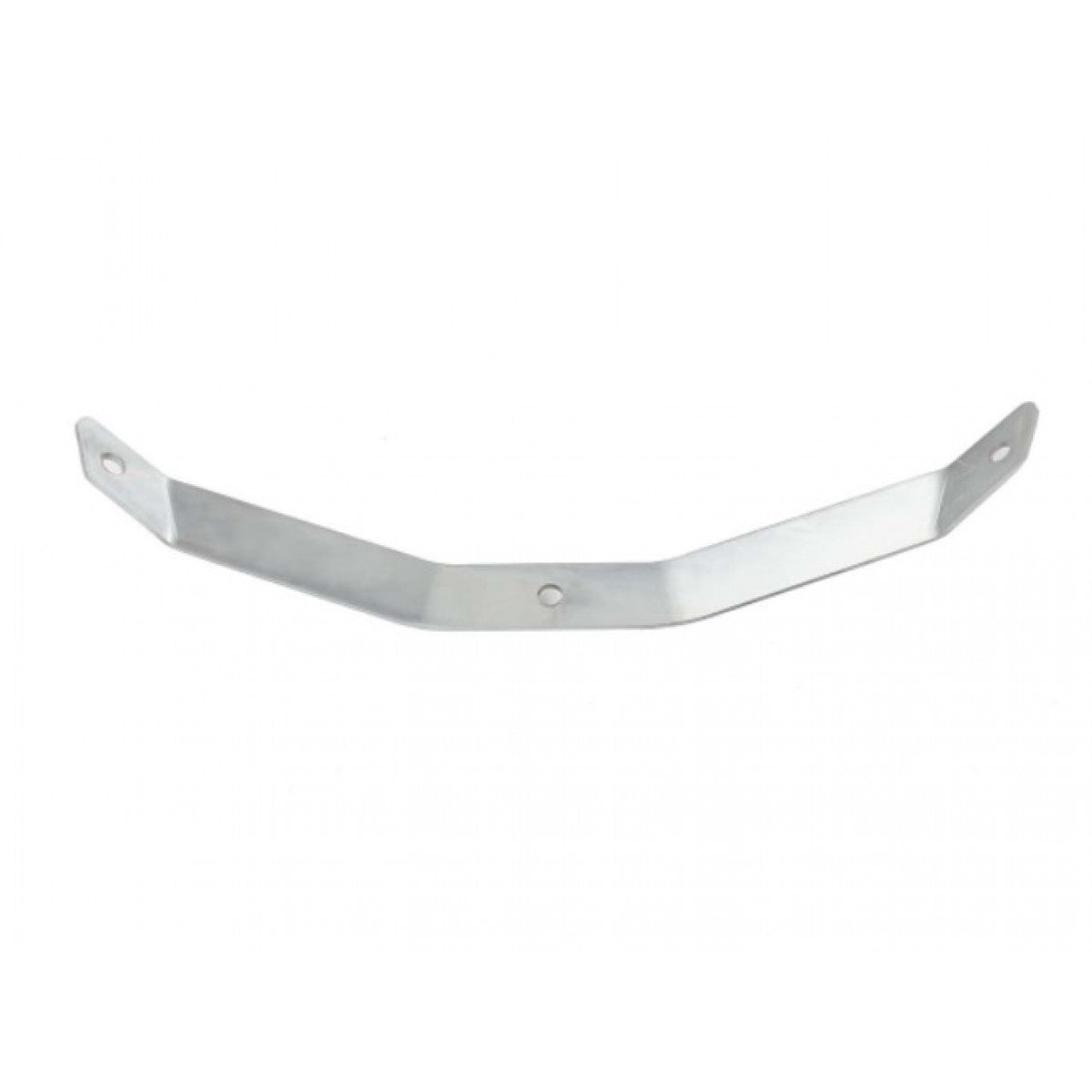

Freeline Support Cross Bar Panel 508
SKU:FL-20.15857.06-CR
Sale
Sold out
Ex VAT:
£9.70
£11.64
Inc VAT
Shipping calculated at checkout.
Only 4 units left
Couldn't load pickup availability
Part of the Freeline Front Pod 507 Panel 508 diagram
See the other 8 parts in this group · add what else you need
View all 9 in Freeline Front Pod 507 Panel 508 →Browse the full Freeline / Birel ART diagram →
View the Freeline Front Pod 507 Panel 508 parts diagram →Numbered drawing · find your part and add it from the listLoading parts…
| Pos. | FREELINE PART NUMBER | KKC SKU | Description | RRP |
|---|---|---|---|---|
| 1 | 10.15866.00-BA | FL-10-15866-00-BA | FRONT POD KG507 FIXED, PANEL KG508 & SIDE FL12/17 EVO, ASSY. | 374.0 |
| 2 | 10.15867.00-BA | FL-10-15867-00-BA | FRONT POD KG507 DETACH, PANEL KG508 & SIDE FL12/17 EVO, ASSY. | 378.56 |
| 3 | 40.15785.00-BA | FL-40-15785-00-BA | FRONT POD KG 507 | 86.66 |
| 4 | 20.10601.18-BA | FL-20-10601-18-BA | SIDE POD FL12/17 EVO | 59.85 |
| 6 | 40.11716.00-NE | FL-40-11716-00-NE | MOUNTING PLATES FRONT POD FIXED KG | 17.25 |
| 7 | 10.12088.00-NE | FL-10-12088-00-NE | MOUNTING PLATES FRONT POD DETACH. KG CIK/20 | 22.18 |
| 8 | 40.11718.00 | FL-40-11718-00 | FIXING FOR CLOSED SPOILER KG CIK/20 | 24.64 |
| 9 | 40.11717.00-NE | FL-40-11717-00-NE | SUPPORT BUMPER BLACK KG | 14.79 |
| 10 | 10.12132.00 | FL-10-12132-00 | KIT JOINT FRONT PODS FIXED KG | 56.66 |
| 11 | 10.12967.00 | FL-10-12967-00 | KIT JOINT FRONT POD DETACHABLE CIK20 | 61.58 |
| 12 | 40.15787.00-BA | FL-40-15787-00-BA | PANEL KG 508 | 98.07 |
| 13 | 10.15863.00 | FL-10.15863.00 | FIXING BRACKETS PANEL KG 508, ASSY. | 68.42 |
| 14 | 20.2996.20 | FL-20-2996-20 | RUBBER CABLE PASS | 1.25 |
| 15 | 20.15285.06-CR | FL-20.15285.06-CR | BRACKET LOWER SUPPORT PANEL MK20 | 7.42 |
| 16 | 20.15284.06-CR | FL-20.15284.06-CR | BRACKET SUPERIOR SUPPORT PANEL MK20/KG508 | 7.42 |
| 16 | 20.15284.06-CR | FL-20.15284.06-CR | BRACKET SUPERIOR SUPPORT PANEL MK20/KG508 | 7.42 |
| 17 | 20.15857.06-CR | FL-20.15857.06-CR | SUPPORT CROSS BAR PANEL 508 | 9.7 |
| 18 | 20.15754.06-CR | FL-20.15754.06-CR | BRACKET SUPPORT PANEL LEFT KG508 | 7.42 |
| 19 | 20.15755.06-CR | FL-20.15755.06-CR | BRACKET SUPPORT PANEL RIGHT KG508 | 7.42 |
| 20 | 20.3598.06 | FL-20-3598-06 | SPHERIC LOCK FOR FRONT PANEL | 2.48 |
| 21 | 40.6423.00 | FL-40-6423-00 | SPLIT PIN 2x54 | 0.63 |
| 22 | 20.0636.18-NE | FL-20-0636-18-NE | RUBBER WASHER | 1.25 |
| 23 | 20.3615.10-LU | FL-20-3615-10-LU | WASHER COUNTERSUNK M6 | 2.48 |
Parts diagram
About this Product
20.15857.06-CR
