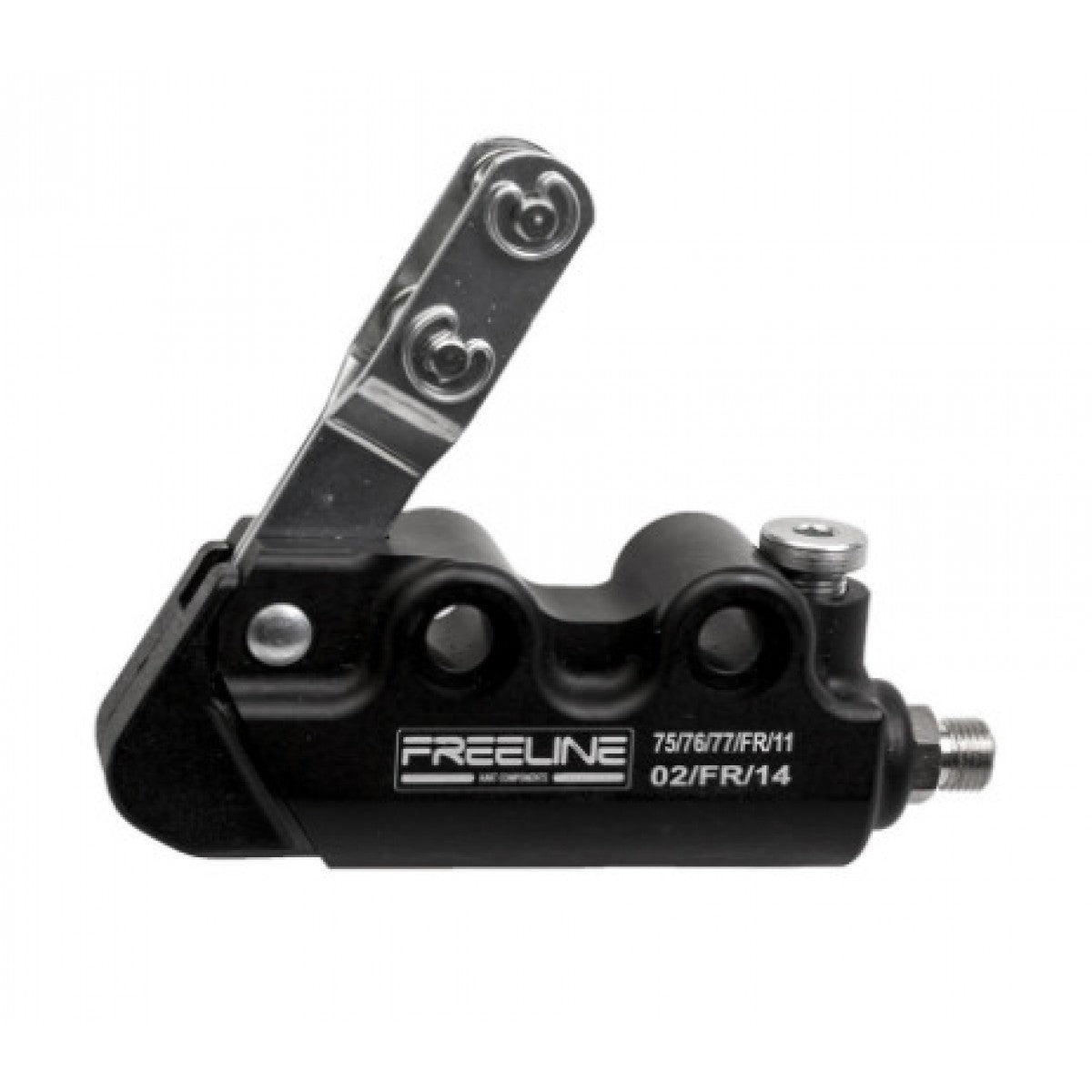

Freeline Master Cylinder 19/B Ld Assembly
SKU:FL-10-6406-00-NE
Sale
Sold out
Ex VAT:
£90.41
£108.49
Inc VAT
Shipping calculated at checkout.
Only 2 units left
Couldn't load pickup availability
Part of the Freeline Brake Master Cylinder diagram
See the other 12 parts in this group · add what else you need
View all 13 in Freeline Brake Master Cylinder →Browse the full Freeline / Birel ART diagram →
View the Freeline Brake Master Cylinder parts diagram →Numbered drawing · find your part and add it from the listLoading parts…
| Pos. | FREELINE PART NUMBER | KKC SKU | Description | RRP |
|---|---|---|---|---|
| 1 | 10.6406.00-NE | FL-10-6406-00-NE | MASTER CYLINDER 19/B LD ASSY. | 90.41 |
| 2 | 20.4901.18 | FL-20-4901-18 | PUMPING MASTER CYLINDER 19/B | 4.94 |
| 3 | 40.6377.00 | FL-40-6377-00 | GROMMET OR 13,95x2,62 EPDM | 0.63 |
| 4 | 40.3738.00 | FL-40-3738-00 | GROMMET OR 15,60x1,78 EPDM | 0.63 |
| 5 | 20.4887.20 | FL-20-4887-20 | RUBBER PROTECTION FOR BRAKE PUMP | 1.25 |
| 6 | 20.3256.06 | FL-20-3256-06 | SPRING FOR MASTER CYLINDER 19 | 1.86 |
| 7 | 10.2112.00 | FL-10-2112-00 | DOUBLE PUMP LEVER ASSEMBLY | 18.61 |
| 8 | 20.15039.06-ZN | FL-20-15039-06-ZN | PIN TC 5X23.5 | 2.48 |
| 9 | 20.13165.06 | FL-20-13165-06 | CIRCLIP Ø 10X12 FILO Ø 1 | 1.25 |
| 10 | 40.7072.00 | FL-40-7072-00 | WASHER 5x9x0,5 | 0.63 |
| 11 | AAI-22 | FL-AAI-22 | CIRCLIP DIN 472 (UNI 7437) | 0.63 |
| 12 | 40.4270.00 | FL-40-4270-00 | CYLINDRICAL CAP | 3.71 |
| 12 | 40.4270.00 | FL-40-4270-00 | CYLINDRICAL CAP | 3.71 |
| 13 | 20.1859.18-NE | FL-20-1859-18-NE | PUMP COVER | 1.25 |
| 13 | 20.1859.18-NE | FL-20-1859-18-NE | PUMP COVER | 1.25 |
| 14 | 20.0873.06 | FL-20-0873-06 | PIN 5x15 | 1.25 |
| 15 | 40.0217.00 | FL-40-0217-00 | CIRCLIP 3,1x11x1 | 0.63 |
| 16 | 40.14019.00 | FL-40.14019.00 | SELF-LUBRICATING FLANGED BUSH 5X7X7 | 0.63 |
| 17 | 10.6459.00 | FL-10-6459-00 | OVERHAUL PUMP KIT 19/B | 10.6 |
Parts diagram
