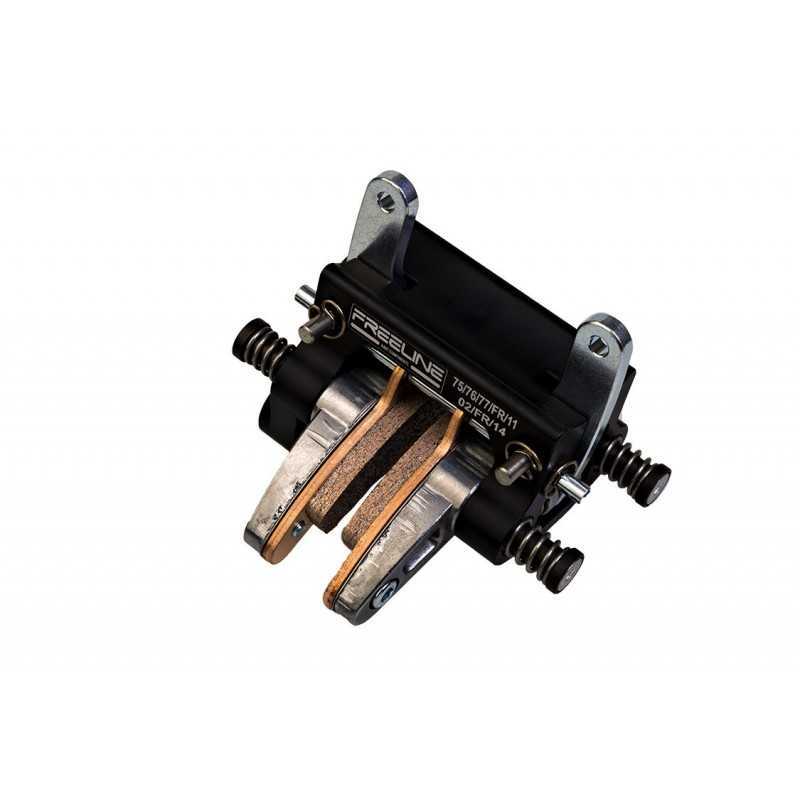

Freeline Birel Art Brake Caliper CX-I24-H5/A HQ
SKU:FL-10-7717-00-NE
Sale
Sold out
Ex VAT:
£282.01
£338.41
Inc VAT
Shipping calculated at checkout.
Couldn't load pickup availability
Out of stock? We'll email you the moment it's back.
One email, no spam — with a link to add it straight to your basket.
Part of the Freeline Brake Systems diagram
See the other 47 parts in this group · add what else you need
View all 48 in Freeline Brake Systems →Browse the full Freeline / Birel ART diagram →
View the Freeline Brake Systems parts diagram →Numbered drawing · find your part and add it from the listLoading parts…
| Pos. | FREELINE PART NUMBER | KKC SKU | Description | RRP |
|---|---|---|---|---|
| 1 | 10.12492.00 | FL-10-12492-00 | REAR BRAKE SYSTEM B32 H8/P19B-LD 630 (2016) | 347.2 |
| 2 | 10.8686.00 | FL-10-8686-00 | REAR BRAKE SYSTEM CX I28-H6-A/P19B-LD 670 | 465.49 |
| 3 | 10.8798.00 | FL-10-8798-00 | REAR BRAKE SYSTEM CX-I24 H5-A/D-P19BLD 630 | 387.92 |
| 3 | 10.8957.00 | FL-10-8957-00 | REAR BRAKE SYSTEM CX-I24 H5-A/D-P19BLD 540 | 387.92 |
| 4 | 10.11369.00 | FL-10-11369-00 | BRAKE SYSTEM M 20X2 H5 | 143.67 |
| 5 | 10.12494.00-NU | FL-10-12494-00-NU | BRAKE TUBE 630-165DO-245DO ASSEMBLY (AM29) | 73.17 |
| 5 | 10.14213.00-NU | FL-10-14213-00-NU | FRONT BRAKE TUBE 530-165do-245 DO ASSEMBLY | 72.67 |
| 5 | 10.7758.00-NU | FL-10-7758-00-NU | REAR BRAKE TUBE CX L630 ASSEMBLY | 33.27 |
| 5 | 10.8706.00-NU | FL-10-8706-00-NU | BRAKE TUBE L670 DO/D ASSEMBLY | 33.27 |
| 7 | 40.3294.00 | FL-40-3294-00 | THREE WAY FITTING BRAKE R | 3.71 |
| 8 | 40.3292.00 | FL-40-3292-00 | ONE WAY FITTING BRAKE R | 1.86 |
| 9 | 40.3293.00 | FL-40-3293-00 | ELBOW FITTING BRAKE R | 3.09 |
| 10 | 10.11367.00-NU | FL-10-11367-00-NU | BRAKE TUBE R. L245 DO | 16.03 |
| 10 | 10.12493.00-NU | FL-10-12493-00-NU | BRAKE TUBE R. L165 DO | 16.03 |
| 10 | 10.3348.00-NU | FL-10-3348-00-NU | BRAKE TUBE R. L480 | 16.03 |
| 10 | 10.3363.00-NU | FL-10-3363-00-NU | BRAKE TUBE R. L630 | 29.33 |
| 10 | 10.8682.00-NU | FL-10-8682-00-NU | BRAKE TUBE L670 DO | 29.33 |
| 11 | 10.11370.00 | FL-10-11370-00 | STEEL CABLE MECHANIC SYSTEM L655 | 14.79 |
| 12 | 10.11373.00 | FL-10-11373-00 | STEEL CABLE MECHANIC SYSTEM L645 | 14.79 |
| 13 | 10.1784.00 | FL-10-1784-00 | CABLE ADJUSTER SUPPORT DOUBLE ASSY | 9.87 |
| 14 | 10.15245.00 | FL-10-15245-00 | WIRE STOP DOUBLE FIXING | 6.18 |
| 15 | 20.0207.06 | FL-20-0207-06 | CABLE HOUSING GUIDE | 1.86 |
| 16 | 20.1546.06 | FL-20-1546-06 | SPHERIC CABLE HOUSING | 2.48 |
| 17 | 20.12017.10-NE | FL-20-12017-10-NE | REAR CALIPER SUPPORT TRANSM. CX | 61.58 |
| 18 | 20.12852.10-NE | FL-20-12852-10-NE | REAR CALIPER SUPPORT TRANSM. C28 | 61.58 |
| 19 | 20.15103.10-NE | FL-20-15103-10-NE | REAR CALIPER TRANSM. R-I38 AM29 2020 | 61.58 |
Parts diagram
About this Product
10.7717.00-NE
