SKU GX160

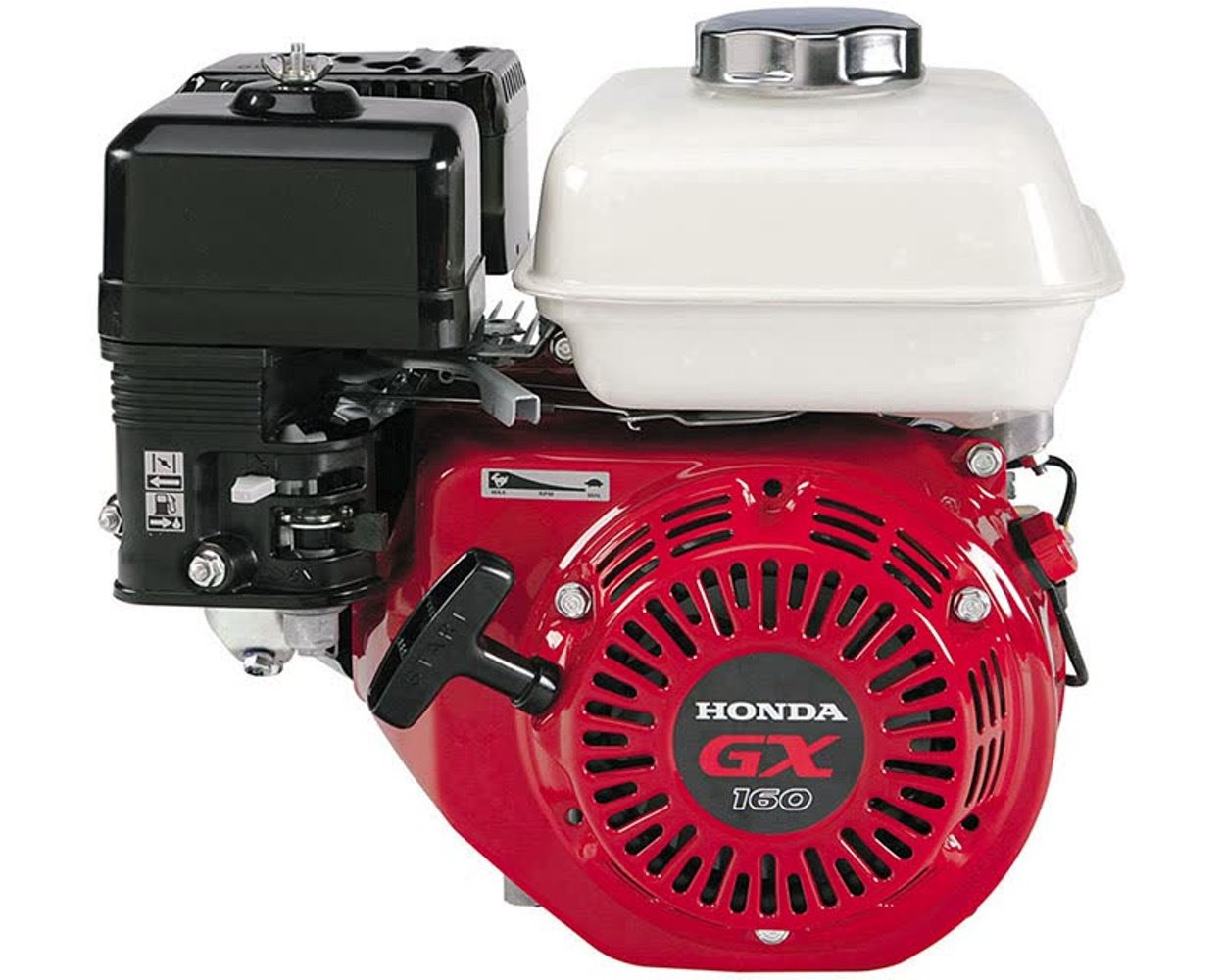

Honda GX160 Ut2 Qh Q4 Engine 19mm Crank, Top Tank

by Honda
Sold out
Original price £266.40 - Original price £266.40
Original price
£266.40
£266.40 - £266.40
Current price £266.40
Availability:
Out of stock

Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: The GX160 lives up to the legend. Lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance.

COMMON APPLICATIONS


  • Kart Racing Engines for Honda Prokart & Honda Cadet
  • Pressure washers
  • Commercial lawn and garden equipment
  • Tillers / cultivators
  • Generators
  • Construction / industrial equipment
  • Agricultural equipment
  • Water pumps
This listing is for the QH Q4 Engine which comes with the Honda Top tank.
We also offer in the eBay shop the QH G4 Engine which comes without the Honda Top Tank

Engine Type

Air-cooled 4-stroke OHV

Bore x Stroke

68 X 45 mm

Displacement

163 cm3

Net Power Output*

4.8 HP (3.6 kW) @ 3,600 rpm

Net Torque

7.6 lb-ft (10.3 Nm) @ 2,500 rpm

PTO Shaft Rotation

Counterclockwise (from PTO shaft side)

Compression Ratio

9.0 : 1

Lamp/Charge coil options

25W, 50W / 1A, 3A, 7A

Carburetor

Butterfly

Ignition System

Transistorized magneto

Starting System

Recoil Starter

Lubrication System

Splash

Governor System

Centrifugal Mechanical

Air cleaner

Dual Element

Oil Capacity

0.61 US qt. (0.58 L)

Fuel Tank Capacity

3.3 U.S. qts (3.1 liters)

Fuel

Unleaded 86 octane or higher

Dry Weight

33 lbs. (15.1 kg)

Dimensions

Length (min)

12.2" (312 mm)

Width (min)

14.3" (362 mm)

Height (min)

13.6" (346 mm)
